Place of Origin : China
Brand Name : Huaye
Certification : ISO14000
MOQ : 50MT
Packaging Details : standard export packing
Delivery Time : 45 days
Payment Terms : L/C, T/T
Supply Ability : 100000
Commodity : Long Steel Hot Rolled U Beam
Grade : Q235B,Q345B
Type : GB standard(10#-40#,100*48mm--400*102mm) JIS standard(50*25mm--250*90mm)
Length : 6m, 12m,Large quantity can be customized
Technique : Hot rolled
Application : 6m, 12m,Large quantity can be customized
MOQ : 50 MT per size
Long Steel Hot Rolled U Beam of Q235, Q345, S235, SS400, SM490, A36 Mild Steel Products
Hot rolled U beam
Steel Grade:Q235, Q345, S235, SS400, SM490, A36, A572
Size: 50*25-150*75mm
Length: as customer’s request (usaull 12m or 6m/5.8m)
Standard Sectional Dimension mm mm | Web thickness (mm) | Flange thickness (mm) | Weight kg/m |
50*25 | 3.00~5.00 | 6.00 | 2.37~3.46 |
75*40 | 3.80 | 7.00 | 5.30 |
75*40 | 4.00 | 7.00 | 5.60 |
75*40 | 4.50 | 7.00 | 5.85 |
75*40 | 5.00 | 7.00 | 6.92 |
100*50 | 3.80 | 6.00 | 7.30 |
100*50 | 4.20 | 6.00 | 8.03 |
100*50 | 4.50 | 7.50 | 8.97 |
100*50 | 5.00 | 7.50 | 9.36 |
125*65 | 5.20 | 6.80 | 11.66 |
125*65 | 5.30 | 6.80 | 12.17 |
125*65 | 5.50 | 8.00 | 12.91 |
125*65 | 6.00 | 8.00 | 13.40 |
150*75 | 5.50 | 7.30 | 14.66 |
150*75 | 5.70 | 10.00 | 16.71 |
150*75 | 6.00 | 10.00 | 17.90 |
150*75 | 6.50 | 10.00 | 18.60 |
200*80 | 7.50 | 11.00 | 24.60 |
200*90 | 8.00 | 13.50 | 30.30 |
250*90 | 9.00 | 13.00 | 34.60 |
300*90 | 9.00 | 13.00 | 38.10 |
Contact: sales@wxhy.com.cn
![]() |

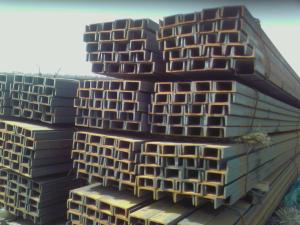

Long Steel Hot Rolled U Beam of Q235, Q345, S235, SS400, SM490, A36 Mild Steel Products Images |
